Ковш с ротатором-наклонным механизмом: универсальное навесное оборудование, придающее экскаватору «гибкое запястье».

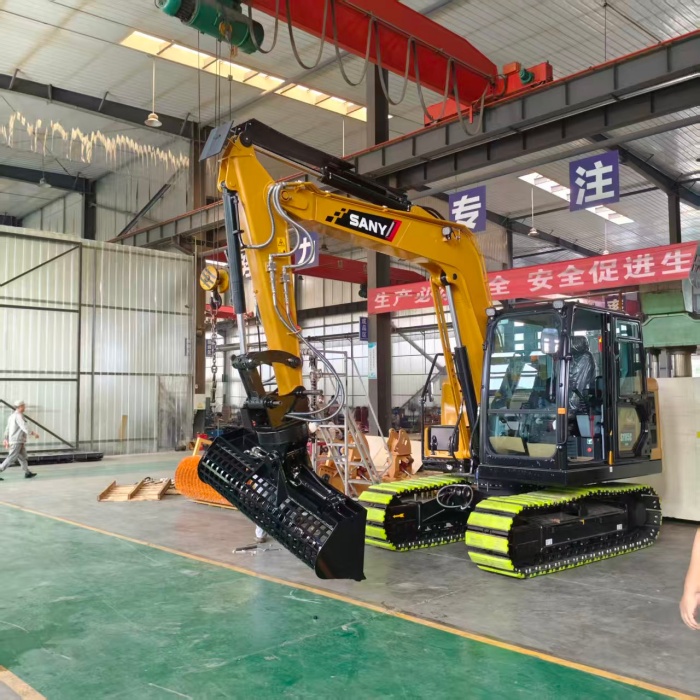

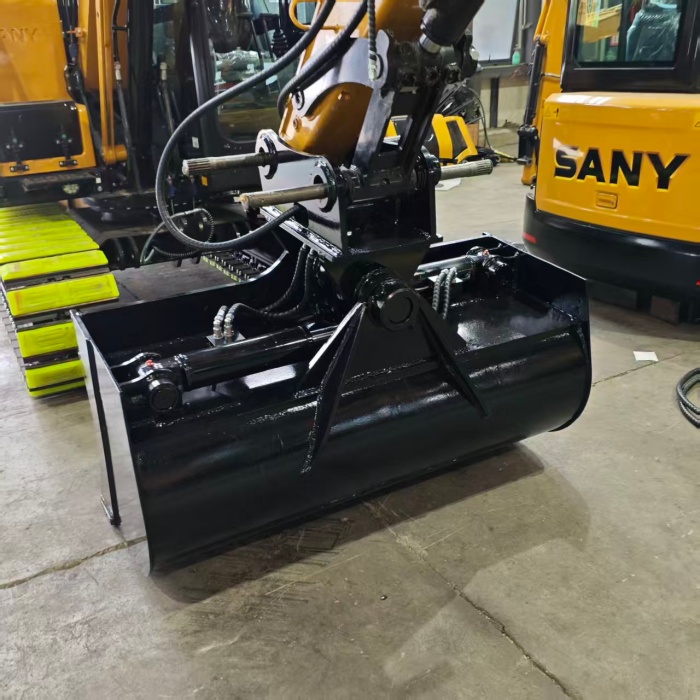

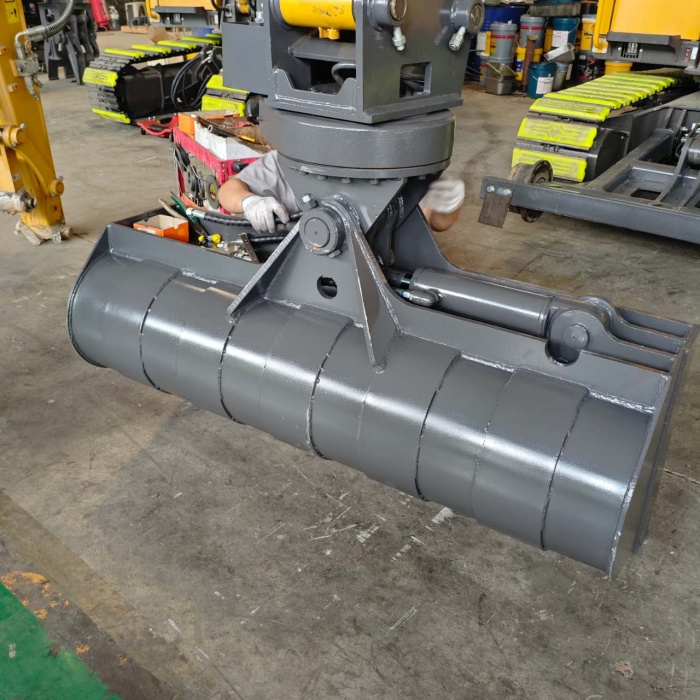

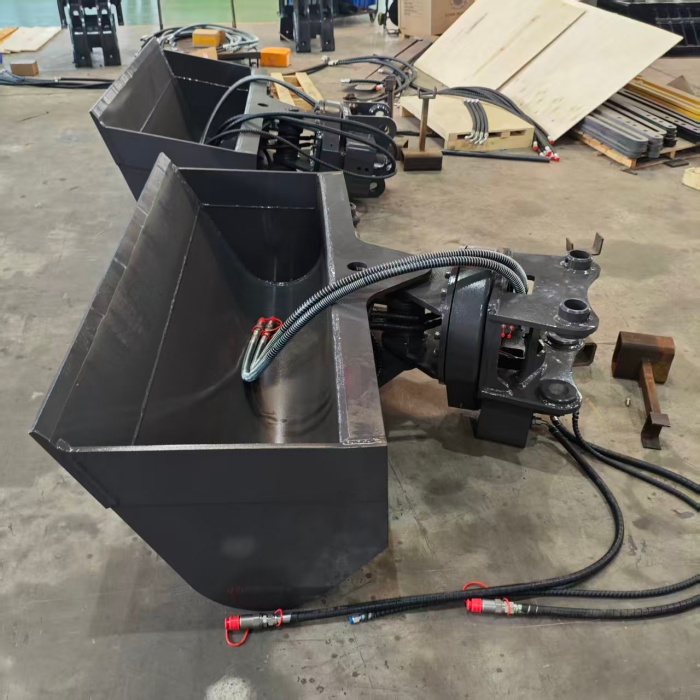

A tilt-rotator bucket is a hydraulic attachment mounted between an excavator's stick and the bucket; it allows the bucket to rotate continuously 360 degrees and tilt side-to-side—much like a human wrist—thereby significantly enhancing the excavator's flexibility and operational precision.
Key Functions
Its primary role is to enable the execution of complex and intricate tasks without repositioning the excavator's main body.
Precision Excavation and Grading: It facilitates slope trimming, trenching (including inclined trenches), and fine grading with millimeter-level accuracy.
Multi-angle Material Handling: It allows for material dumping to either side of the machine and maintains load stability on uneven terrain, simplifying loading and unloading operations.
Tool Versatility: Serving as a mounting platform, it enables rapid connection to—and provides hydraulic power for—various hydraulic attachments such as grapples, breakers, and milling heads, thereby transforming the excavator into a multi-purpose machine.
Core advantages
Improved efficiency: Reduce the number of machine repositionings, reportedly increasing productivity by 20% to 50%.
Enhanced flexibility and precision: Allows the excavator to work flexibly in restricted areas such as narrow spaces and near buildings.
Reduced costs: Less machine movement means lower fuel consumption, less work time and equipment wear and tear.
Improved safety: reduces the need for machine movement and human assistance, reducing site safety risks
Key Features
Compound Motion: Typically features 360° continuous rotation and a 40° tilt angle; simultaneous rotation and tilting allow for smoother operation.
Hydraulic Drive: Powered by hydraulic motors and cylinders, requiring the excavator to supply the necessary hydraulic flow and pressure.
Compact Design: Features a compact structure with internally protected tilt cylinders, enabling operation in narrow trenches while minimizing the risk of damage.
Integrated Control: Operable via excavator joysticks or dedicated control systems; some models support simultaneous control of all functions for greater precision.
Operational Applications
Municipal and Utilities: Precision trenching, pipe laying, and backfilling; offers distinct advantages when working in close proximity to existing structures or utility lines.
Landscaping: Slope trimming, terrain contouring, fine grading, and turf laying.
Roads and Railways: Roadbed construction, slope trimming, and material handling and organization along railway lines.
Construction and Demolition: Foundation excavation, precision contouring, and material sorting and handling.
Winter Maintenance: Efficient snow removal when paired with attachments such as snow-sweeping brushes.
